SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton

Used Rough Terrain Crane SANY SRC750 Second Hand Rough Terrain Mobile Truck Crane

Production Details:

• Innovative design: using PROE, finite element analysis, simulation analysis and other high-tech software to optimize the design, maximize the use of material mechanical properties, light weight and higher mobility;
• Using a powerful engine, the rated power is 210kw at 2500rpm, and the torque is 970N.m at 1500rpm. meet higher emission requirements;
• The main boom is made of high-strength steel plate, 5-section U-shaped boom design, with better rigidity and strength, and more stable lifting performance;
• Equipped with a torque limiter with an all-round intelligent protection system, the accuracy is within 10%;
• Full hydraulic power steering, with 4 steering modes, good maneuverability;
• Comprehensive logic and interlock control for safer and more reliable operation.

Product Parameters:

Dimensions	Overall length: 14248mm Overall width: 3340mm Overall height: 3800mm
Dynamic parameters	Engine rated power: 210/2500kw/rpm Engine rated torque: 970/1500N.m/rpm
Traveling parameters	Max. driving speed: 40Km/h Min. turning radius (2 wheels/4 wheels): 12.5/7.5m Max. grade: 75% Fuel consumption per 100 kilometers: 65L
Performance parameters	Max. lifting moment: basic boom: 2529kN.m Max. lifting moment: the longest main boom: 1232kN.m Lifting height: basic boom: 11.8m Lifting height: Longest main boom: 44.5m Lifting height: the longest main boom + jib: 62.5m Boom Length: Basic Boom: 11.8m Boom length: the longest main boom: 45m Boom length: the longest main boom + jib: 61m
Working speeds	Main hoist single rope max. lifting speed (no load): 125m/min Boom full extension/retraction time: 120/130s Boom up/down time: 70/100s Max. rotation speed: 2r/min Horizontal outrigger full extension/retraction time: 20/25s Vertical outrigger fully retracted/retracted time: 25/35s

SANY Used All Terrain Crane

75 ton Used All Terrain Crane

SANY SRC750

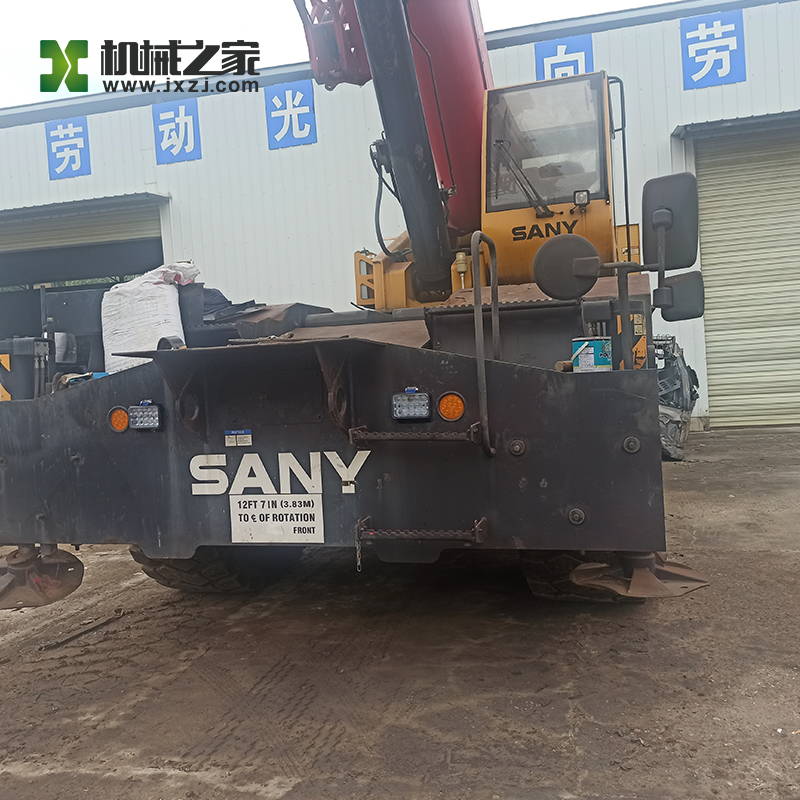

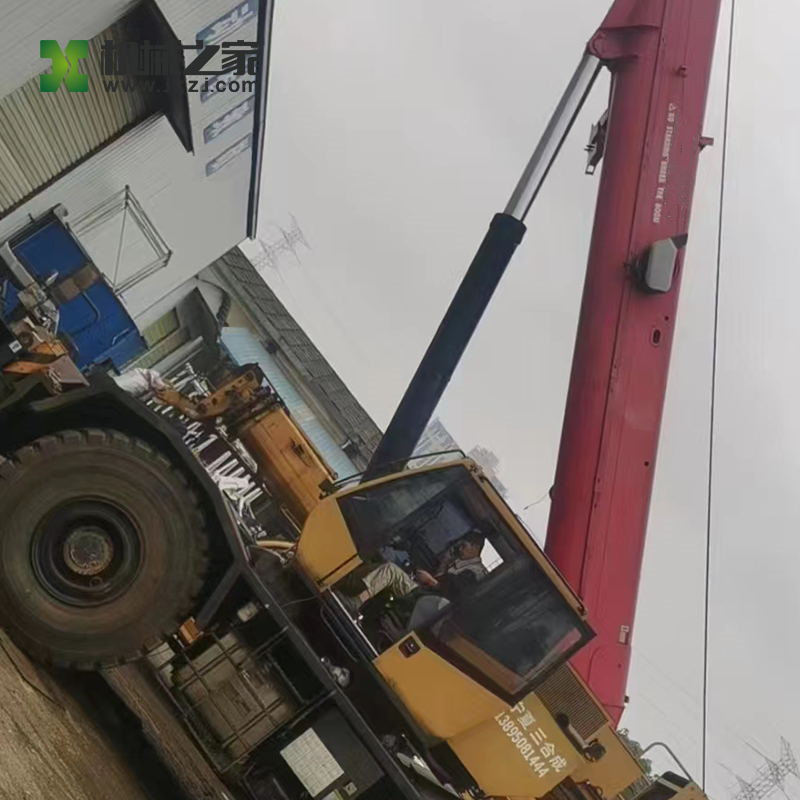

SANY SRC750 Used All Terrain Crane Second Hand Rough Terrain Truck Crane 75 Ton Images
